In demanding industrial environments—such as plastic extrusion drying, welding extraction bays, and engine testing facilities—flexible ducting acts as the critical "respiratory system" of your plant. Yet, many facility managers face the same costly issue:

Two red silicone hoses may look identical in a catalog, but their performance on the factory floor tells a completely different story.

Low-cost hoses often harden, blister, crack, or collapse under vacuum pressure after only a few weeks. The resulting air leaks, toxic fume escapes, and lost thermal energy lead to expensive, unscheduled equipment downtime.

Here is an engineering overview of ECOOSI’s EISD Series (Silicone Ducting), explaining why multi-layer composite construction and strict material selection deliver unmatched reliability.

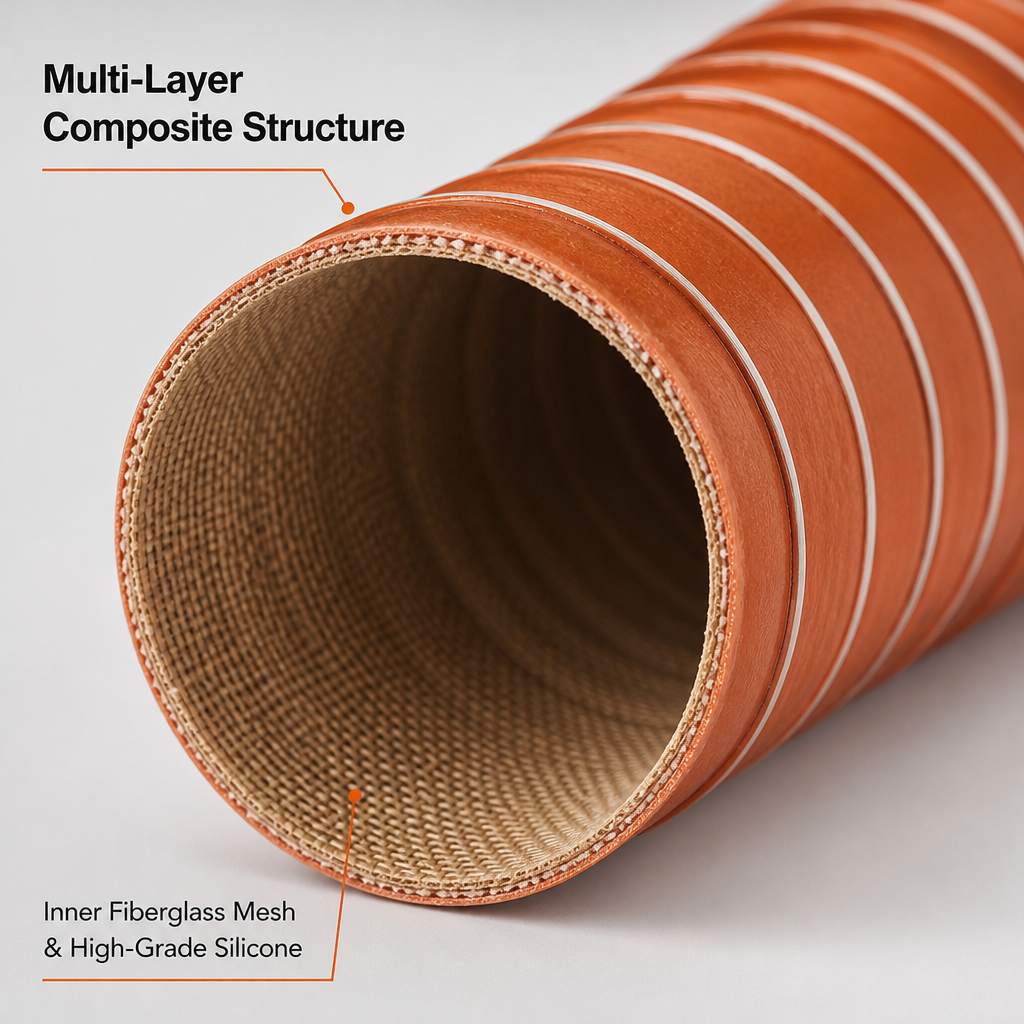

1. Multi-Layer Composite Construction

Most low-grade commercial hoses rely on a single fiberglass mesh with a thin silicone wash. Under continuous thermal cycling, this surface layer easily separates, causing pinhole leaks and structural failure.

The ECOOSI EISD Series is engineered with a heavy-duty, multi-tier composite architecture:

Dual-Layer Fiberglass Matrix: Provides foundational structural integrity and dimensional stability under continuous heat exposure.

High-Grade Silicone Encapsulation: Shields the fabric against moisture, steam, ozone, and mildly corrosive chemical vapors.

Embedded Spring Steel Wire Helix: Spring steel (or optional AISI 304 Stainless Steel) maintains radial strength under positive pressure and prevents vacuum collapse under negative suction.

External Fiberglass Filament Cord: Locks the outer ply tightly around the internal spring wire, preventing delamination and exterior wear during movement.

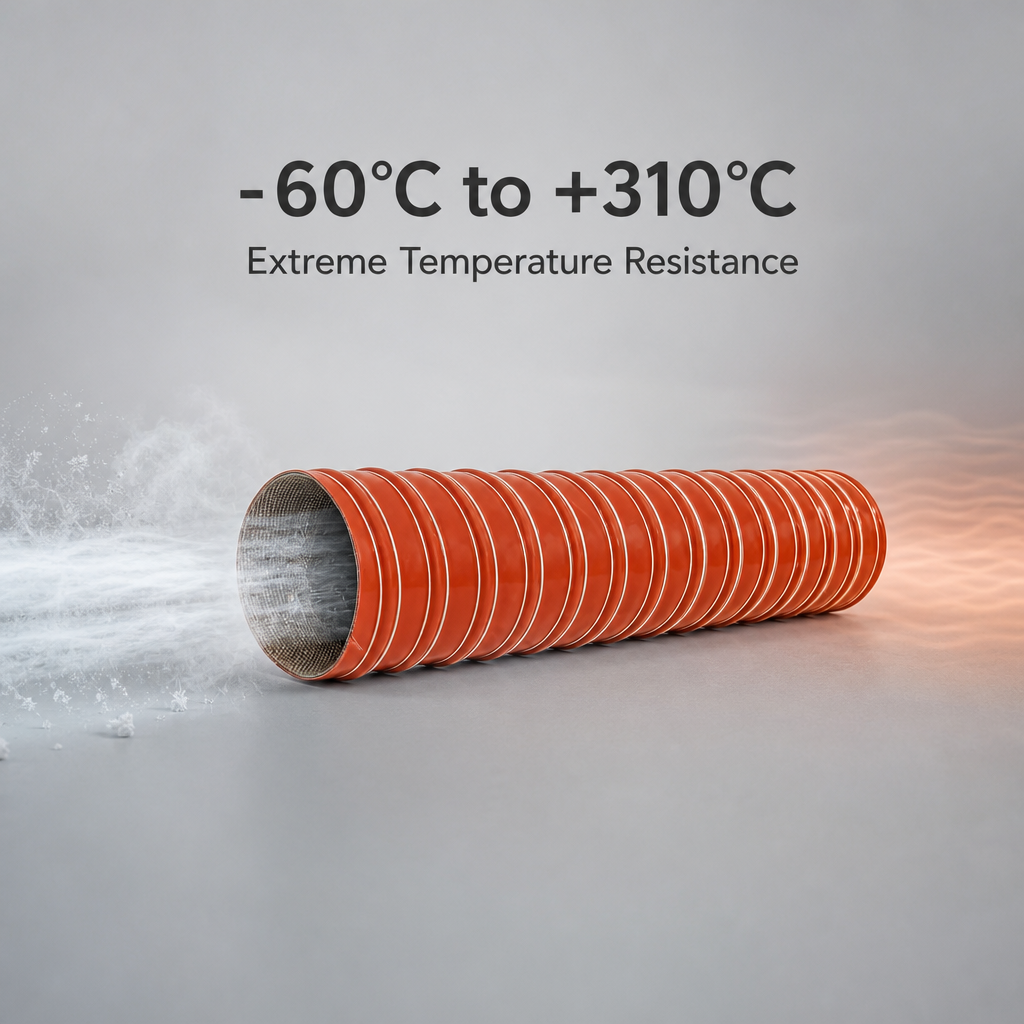

2. Surviving the Thermal Gauntlet: -60°C to +310°C

Industrial processes rarely maintain steady ambient temperatures. Start-stop cycles in drying ovens, lithium-ion battery coating lines, and automotive exhaust systems expose ducting to severe thermal shock.

Continuous Operating Range: Reliable operation from -60°C up to +260°C (-76°F to +500°F).

Intermittent Peak Rating: Handles short-term thermal spikes up to +310°C (+590°F) without charring or softening.

Sub-Zero Resilience: Retains flexibility down to -60°C, eliminating brittle cracking during cold-weather startups.

Zero Toxic Leaching: High-purity vulcanized silicone will not emit sticky oily residues or pungent off-gassing into clean air streams.

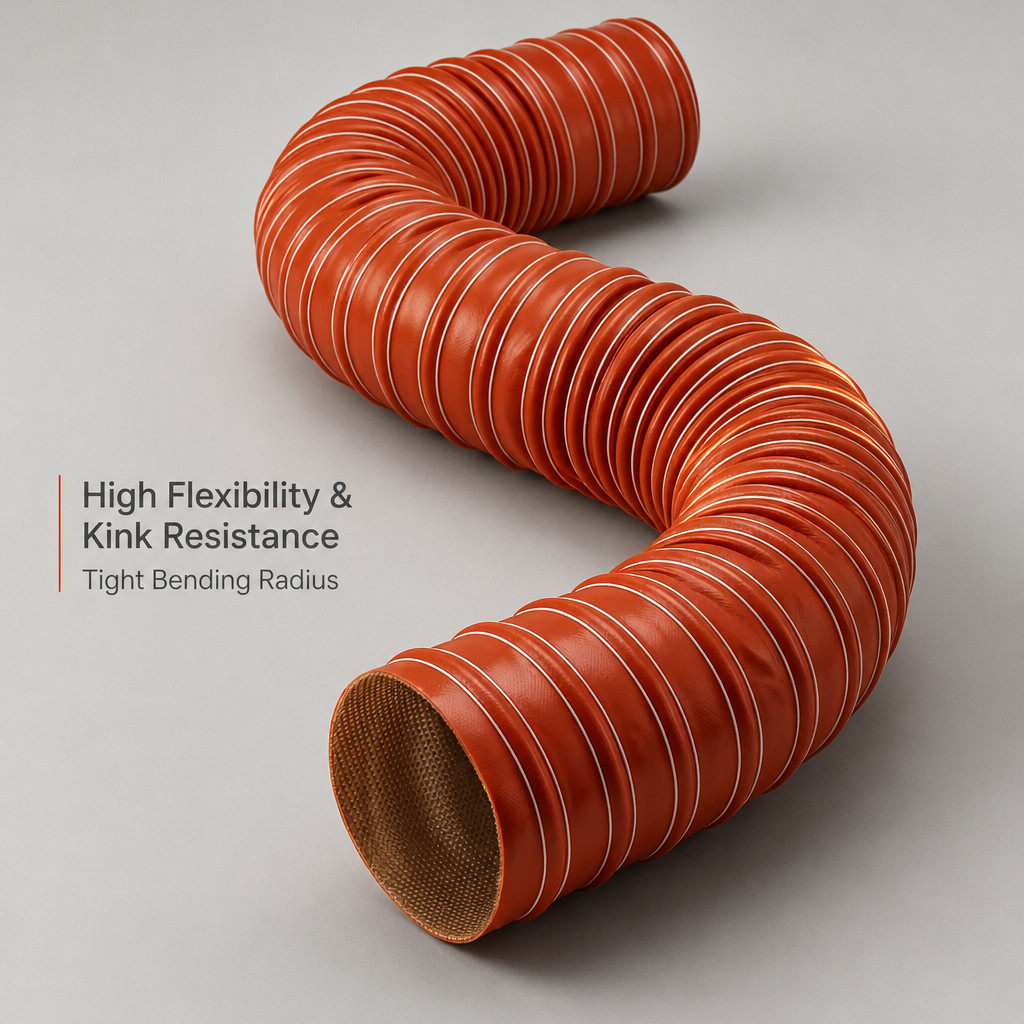

3. Aerodynamics & Kink Resistance in Compact Spaces

Ducting must frequently navigate tight bends around machine frames, exhaust hoods, and structural columns. A hose that kinks creates turbulence, spikes fan head pressure, and reduces extraction efficiency.

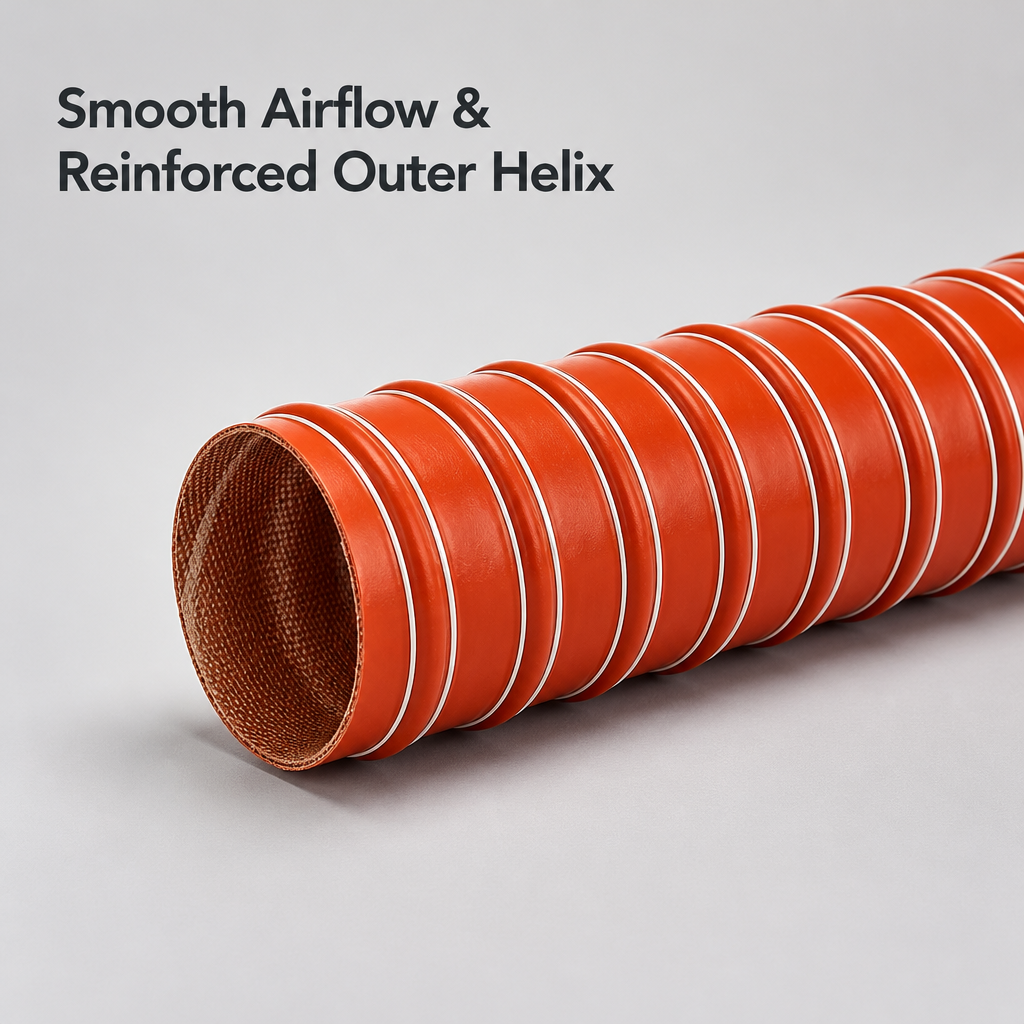

Smooth Inner Bore for Unrestricted Flow

Unlike rough, corrugated single-ply ducts that trap particulate and create eddy currents, ECOOSI EISD features an aerodynamic, smooth interior:

Low Friction Coefficient: Maximizes CFM airflow delivery while lowering blower motor energy consumption.

Anti-Clogging Performance: Prevents particulate matter, plastic pellet dust, and fiber accumulation from building up inside the hose.

Vacuum & Pressure Balance

The tuned pitch of the spring wire helix gives the EISD series an exceptional bend radius (approximately equal to 1× the inner diameter on select sizes) without ovalization or interior necking.

4. Key Industrial Application Scenarios

ECOOSI EISD silicone ducting serves as the primary flexible conduit across demanding processing sectors:

Plastics & Extrusion Drying: Delivers continuous 150°C–200°C dehumidified dry air; the non-flaking, heat-stable wall prevents plastic resin contamination.

Welding & Laser Fume Extraction: Safely routes hot particulate sparks and toxic fumes; flame-retardant silicone resists burning pinholes from stray sparks.

Industrial Dust Collection: Transports abrasive warm air with static and particulate loads; high-tensile reinforcement handles medium-velocity exhaust.

Engine & Vehicle Dyno Testing: Handles high-velocity pulsating exhaust gases (250°C+); absorbs engine vibration and dampens mechanical noise.

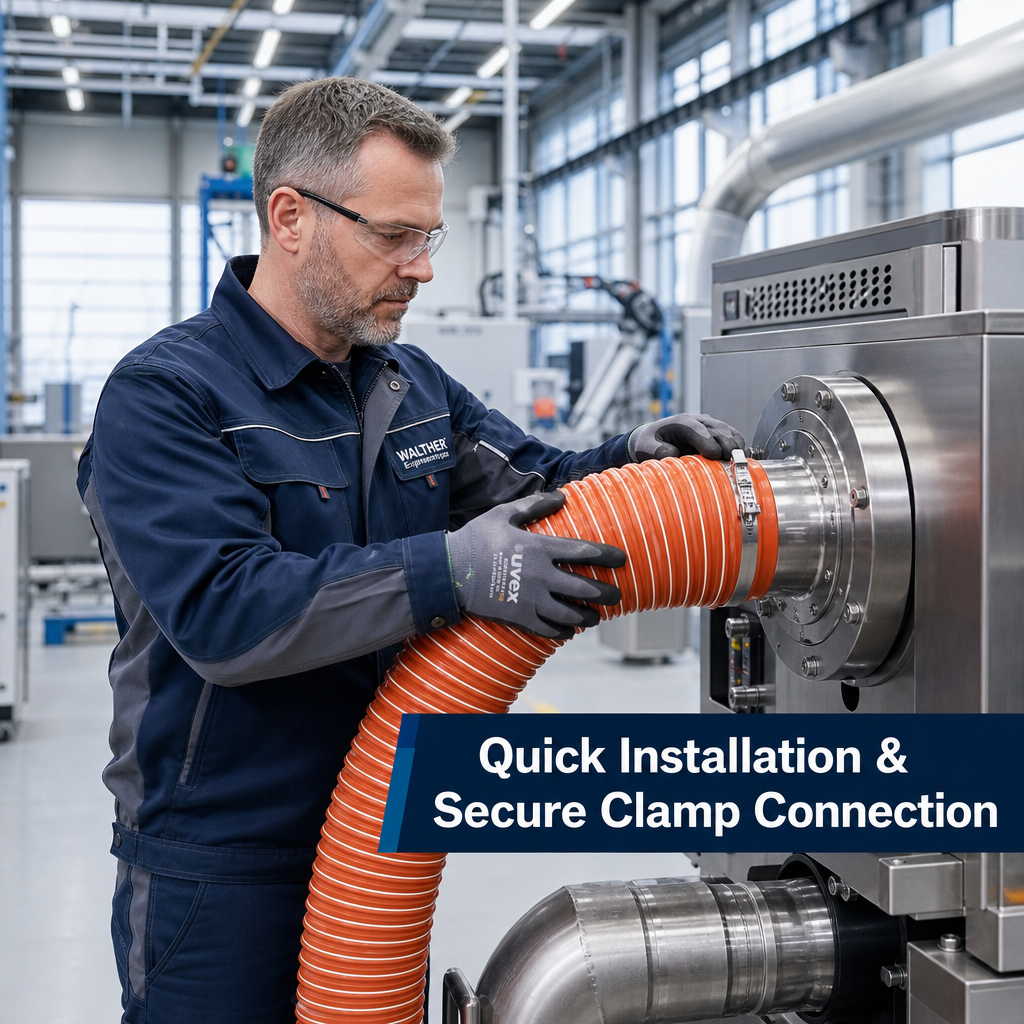

5. Fast Installation & Technical Specifications

Downtime during routine maintenance costs money. Connecting high-temperature flexible ducts should not require specialized tools or complex adapters.

Material Construction: 2-Ply Silicone-Coated Fiberglass Fabric

Internal Reinforcement: High-Carbon Spring Steel Wire Helix (Optional: 304 Stainless Steel)

External Wrap: High-Tensile Fiberglass Cord (White Spiral)

Temperature Range: -60°C to +260°C (Intermittent peaks to +310°C)

Inside Diameter (ID) Range: 16 mm to 400 mm (5/8" to 16")

Standard Length: 4.0 meters per section (Custom lengths supported)

Flammability Compliance: International flame-retardant standards

Upgrade Your Plant's High-Temperature Ventilation Today

Stop replacing damaged, brittle ducting every quarter. Contact the engineering team at ECOOSI to cross-reference your current hose specifications and receive a tailored quotation and technical data sheet.
